Top de cocción eléctrica de 4 hornillas redondas

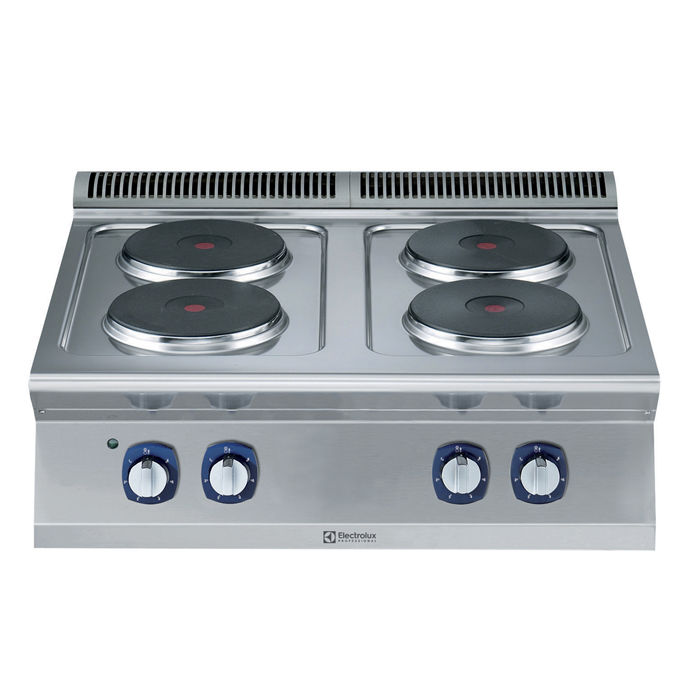

4-hot plate (2,6 kW each) electric boiling top

To be installed on stainless steel feet with height adjustment up to 50 mm. Four 2.6 kW cast-iron hot plates hermetically sealed to the one-piece top. Stainless steel oven chamber with 3 levels of runners to accomodate 2/1 GN shelves (2 steam pans). Ribbed oven base plate. Exterior panels in stainless steel with Scotch Brite finish. One piece pressed work top in 1.5 mm thick stainless steel. Right-angled side edges to allow flush-fitting junction between units.

Unit to be mounted on open base cup boards, bridging supports or cantilever systems.
The two 2.6 kW cast-iron plates are hermetically sealed to the one-piece top.
The special design of the control knob system guarantees against water infiltration.
IPx4 water protection.

External panel in Stainless Steel with Scotch Brite finish.
One piece pressed 1.5 mm work top in Stainless steel.
Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.

Electric
Supply voltage: 371127 (E7ECEH4R0N) 230 V/3 ph/50/60 Hz
Total Watts: 10.4 kW

Key Information:
Front Plates Power: 2.6 - 2.6 kW
Back Plates Power: 2.6 - 2.6 kW
Front Plates dimensions: Ø 230 Ø 230
Back Plates dimensions: Ø 230 Ø 230
External dimensions, Width: 800 mm
External dimensions, Height: 250 mm
External dimensions, Depth: 730 mm
Net weight: 40 kg
Shipping weight: 55 kg
Shipping height: 540 mm
Shipping width: 820 mm
Shipping depth: 860 mm
Shipping volume: 0.38 m³ If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
Certification group: N7CE1
