Placa de Inducción de 2 secciones, control individual, diam. 230 mm

391168 (E9INED200N)

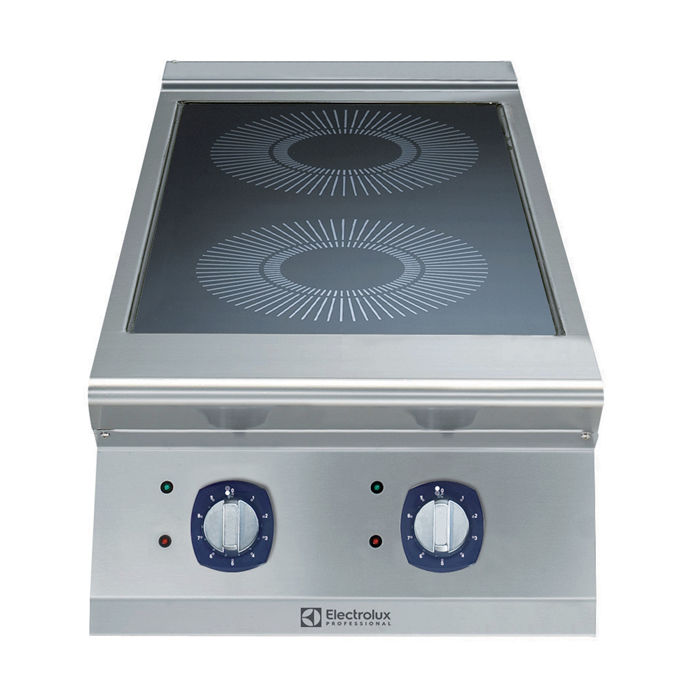

2-zone (5 kW each) electric induction cooking top

Volver a gama 900XP


  • Glass ceramic cooking surface with 2 independently controlled 5 kW induction zones. Induction top surface with seamless transition between individual heating zones. Body and work top of unit entirely in stainless steel with Scotch Brite finish. Extra strength work top in heavy duty 2 mm stainless steel. Rightangled side edges to allow flush-fitting junction between units.

  • Glass ceramic cooking surface with 2 independently controlled induction zones with a power of 5 kW per zone.
  • Almost the entire surface of the ceramic plate can be used without “dead” spots.
  • One indicating lamp for each zone located on control console.
  • Induction plates endowed with overheating safety device.
  • Power to the individual zones can be set with progressive output i.e. fine regulation at the lower and larger progress at the upper levels.
  • Low heat dissipation to the kitchen.
  • The smooth, glass ceramic plate is not directly heated, so there is no burning on cooking surface.
  • IPX5 water protection.
  • Pots diameter to be used : min 12cm, max 28 cm in order to obtain maximum heating efficiency.

  • Unit is 930 mm deep to give a larger working surface area.
  • All exterior panels in Stainless Steel with Scotch Brite finishing.
  • AISI 304 stainless steel worktop, 2mm thick.
  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
Electric
Supply voltage: 391168 (E9INED200N) 230 V/3 ph/50/60 Hz
Total Watts: 10 kW
Predisposed for:
Key Information:
Induction Top Dimensions (width): 400 mm
Induction Top Dimensions (depth): 930 mm
External dimensions, Width: 400 mm
External dimensions, Height: 250 mm
External dimensions, Depth: 930 mm
Net weight: 40 kg
Shipping weight: 60 kg
Shipping height: 540 mm
Shipping width: 460 mm
Shipping depth: 1020 mm
Shipping volume: 0.25 m³
Induction compatible pots & pans must be used.
Certification group: NIN49F
If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
