727133 - Abatidor

For 20 GN1/1 or 600x400 mm trays. Load capacity: chilling 64 kg; freezing 56 kg (UK guidelines). Main components in 304 AISI stainless steel. Internal rounded corners and drain.Built-in refrigeration unit. Automatic detection of food probe insertion. Automatic and Manual defrost. Blast chilling real residual time estimation (A.R.T.E.). Turbo cooling function. Specific cycles for ice cream. Evaporator with antirust protection. Digital temperature and time display. HACCP and Service alarms with data logging. Operating air temperature: +90 -41°C. For ambient temperatures up to 32°C. Cyclopentane insulation (HCFC, CFC and HFC free). R404a refrigerant gas (HCFC and CFC free).

Blast Chilling cycle: 64 kg from 90°C up to 3° C in less than 90 minutes.
Blast Freezing cycle: 56 kg from 90ºC up to -18ºC in less than 240 min.
Soft Chilling (air temperature -2°C).
Hard Chilling (air temperature -20°C).
Holding at +3 °C for chilling or -22 °C for freezing, automatically activated at the end of each cycle, to save energy and maintain the target temperature (manual activation is also possible).
Freezing (air temperature -36°C)
Turbo cooling: chiller works continuously at the desired temperature; ideal for continuous production.
Control unit provides two large displays to read out: time, core temperature, cycle countdown, alarms, service information.
Two customizable cycles (P1 & P2) for each operating mode, allowing to set the time and air temperature. These programs can be converted into ice-cream specialized cycles (shape maintainance and holding).
All information related to the different operating models are recorded: date, time, cycle, core temperature, holding temperature, HACCP accordance.
Single sensor core probe as standard.
Remaining time estimation for probe-driven cycles based on artificial intelligence techniques (ARTE) for an easier planning of the activities.
Performance guaranteed at ambient temperatures of +40°C.

Refrigerant type: R404a.
High density polyurethane insulation, 60 mm tickness, HCFC free.
Magnetic, easy-to-remove heated gaskets. ·
304 AISI stainless steel construction throughout.
Seamless hygienic inner cell with all rounded corners for easy cleaning.
Swing hinged front panel for easy service access to main components.
Ventilator swinging hinged panel for access to the evaporator for cleaning.
Waste water can be plumbed into drain, but can also be collected in an optional waste container.

1 of 1 extra single-sensor probe for blast chiller and blast chiller&freezers PNC 880213
1 of Removable tray support rack for 20 GN 1/1

727133

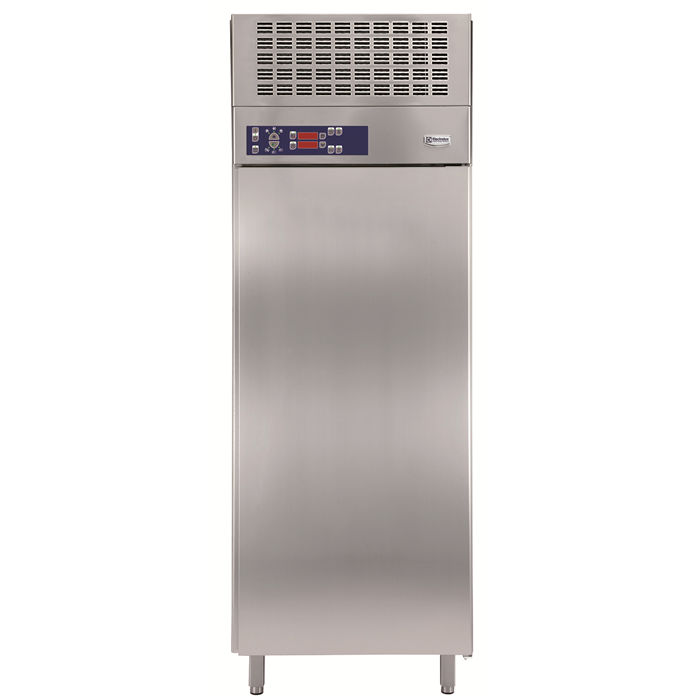

Blast Chiller & Freezer 56 Kg., 20 GN 1/1

Electric
Supply voltage: 727133 (RBF2016) 220-230 V/3 ph/60 Hz
Electrical power max.: 727133 (RBF2016) 3.07 kW
