738243 Refrigerador 2030 L 3 puerta 0 a 5 ¯C

738243 (KCHRI81R3DR)

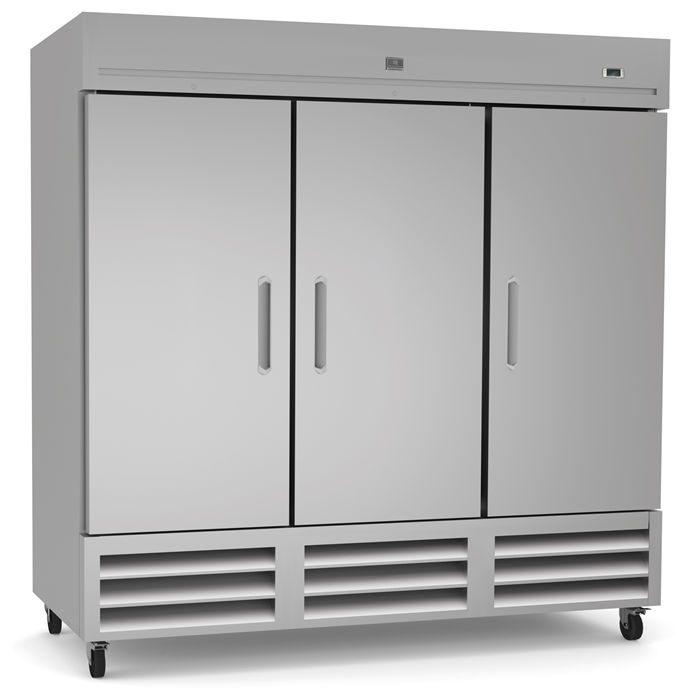

3-door reach-in refrigerator, stainless steel, 72 cubic feet, R290 refrigerant gas, +33/+41°F


  • 3 full door refrigerator with exterior back and bottom panels in galvanized steel, exterior side and top panels in 430 stainless steel; interior back, side, top and bottom panels in 304 stainelss steel. Control with cabinet temperature display. Self-closing and on-site reversible door feature lock and key.
  • R290 gas in the refrigeration circuit. ETL Safety and Sanitation certifications. 3/5 Years warranty

  • External temperature display.
  • Removable door gasket for easy cleaning operations.
  • Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3) - CFC and HCFC free.
  • Fin & Tube Condenser improves performance in high temperature environments.
  • Automatic Defrost Cooling System provides worry-free performance.
  • Electronic Temperature Control, quick and simple to set, with control display for easy monitoring.
  • Heavy duty Vinyl coated steel shelves.
  • High efficiency components to minimize the energy consumption still guaranteeing the highest performances.
  • Cabinet and door insulated with high density polyurethane for low environmetal impact.
  • Bottom mounted cooling unit slides out for easy access and cleaning.
  • CFC and HCFC free, highly ecological refrigerant type: R290 (ecological gas in foam: cyclopentane). Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3), to reduce green house and ozone depletion effects.
  • Interior LED light to save energy and for best internal visibility

  • Lockable door.
  • Self-closing door with 90-degree stay-open feature.
  • Heavy duty casters.
  • Pre-wired heavy duty power cord.
  • Heavy duty door hinges.
  • Magnetic door gasket removable without tools for easy cleaning.
Electric
Supply voltage: 738243 (KCHRI81R3DR) 115 V/1 ph/60 Hz
Electrical power max.: 0.8 kW
Current consumption: 7.5 Amps
Plug type: USA NEMA 5-15P
Key Information:
Capacity (Cu.Ft.) 72
Door hinges: 1 Left+ 2 Right
External dimensions, Width: 81 " (2057 mm)
External dimensions, Height: 82 1/4" (2090 mm)
External dimensions, Depth: 32 11/16" (830 mm)
Number and type of doors: 3 Full
Internal Dimensions (depth): 27 1/16"
Internal Dimensions (height): 60 1/4"
Internal Dimensions (width): 76 5/16"
Shipping height: 84 5/8" (2150 mm)
Shipping weight: 668 lbs (303 kg
Shipping volume: 139.55 ft3 (3.95 m3)
Number and type of grids (included): 9 - Vinyl-Coated Steel
Type of external material: 430 AISI
Type of internal material: 304 AISI
Warranty: 3 / 5 years
Refrigeration Data
Compressor power: 3/4
Refrigerant type: R290
Refrigerant weight: 150 g
Operating temperature min.: 32 °F
Operating temperature max.: 41 °F
Condenser type: Fin & tube
Defrost type: Auto Defrost
