Mesa refrigerada 510 L 3 puertas 0 a 5 ¯C sin lambrín

738292 (HCTUC72)

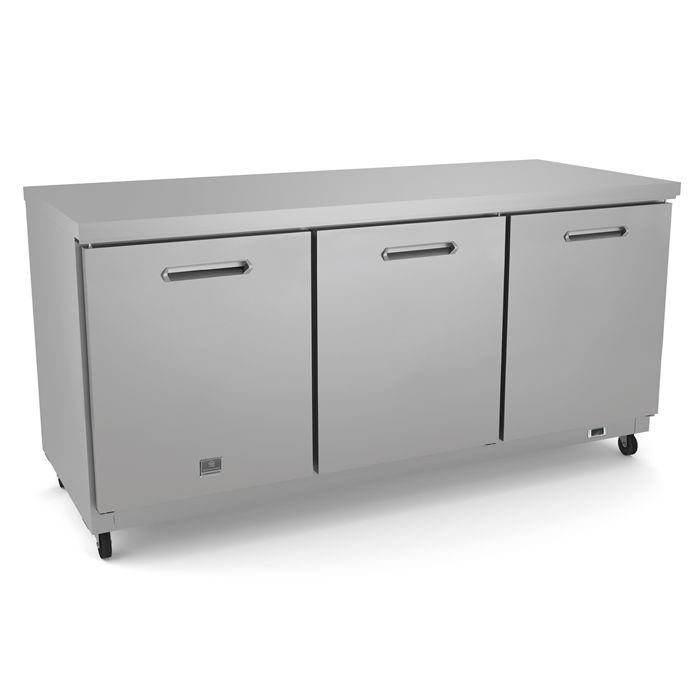

3-door undercounter refrigerator, 72", R600a
refrigerant gas, 33/+41°F , stainless steel

Volver a Preservación


  • 3-door refrigerator counter top with exterior back panel in aluminium, exterior bottom panel in galvanized steel, exterior side and top panel in 430 stainless steel; interior back, top and bottom panels in 304 stainless steel.
  • Fin & tube condenser to improve the performances in high temperature environments. Automatic Defrost Cooling System and temperature control. Vinyl heavy duty adjustable, easy to handle and clean shelves. External temperature display.
  • R290 gas in the refrigeration circuit. ETL Safety and Sanitation certifications. 3/5 Years warranty

  • External temperature display.
  • Removable door gasket for easy cleaning operations.
  • Fin & Tube Condenser improves performance in high temperature environments.
  • Automatic Defrost Cooling System provides worry-free performance.
  • Electronic Temperature Control, quick and simple to set, with control display for easy monitoring.
  • Heavy duty Vinyl coated steel shelves.
  • High efficiency components to minimize the energy consumption still guaranteeing the highest performances.
  • Cabinet and door insulated with high density polyurethane for low environmetal impact.

  • Stainless steel interior and exterior, durable and easy to clean for daily commercial use.
  • Self-closing door with 90-degree stay-open feature.
  • Heavy duty casters.
  • CFC and HCFC free (ecological refrigerant type: R600a).
  • Pre-wired heavy duty power cord.
  • Heavy duty door hinges.
  • Magnetic door gasket removable without tools for easy cleaning.
Electric
Supply voltage: 738292 (HCTUC72) 115 V/1 ph/60 Hz
Electrical power max.: 0.4 kW
Current consumption: 3.5 Amps
Plug type: USA NEMA 5-15P
Key Information:
Capacity (Cu.Ft.) 72
Door hinges: Right Side
External dimensions, Width: 71 1/2" (1822 mm)
External dimensions, Height: 35 1/2" (902 mm)
External dimensions, Depth: 29 15/16" (760 mm)
Number and type of doors: 3 Full
Internal Dimensions (depth): 22 13/16"
Internal Dimensions (height): 23 1/2"
Internal Dimensions (width): 22 1/4"
Shipping height: 38 3/16" (970 mm)
Shipping weight: 368 lbs (167 kg)
Shipping volume: 51.02 ft3 (1.44 m3)
Number and type of grids (included): 3 - Vinyl-Coated Steel
Type of external material: Stainless Steel
Type of internal material: Polystyrene
Warranty: 3 / 5 years
Refrigeration Data
Compressor power: 1/6
Refrigerant type: R600a
Refrigerant weight: 125 g
Operating temperature min.: 32 °F
Operating temperature max.: 41 °F
Condenser type: Fin & tube
Defrost type: Auto Defrost

Ficha técnica
