Refrigerador Digital, 600 Lts. 1 Puerta

790132 (SB600P1D3C)

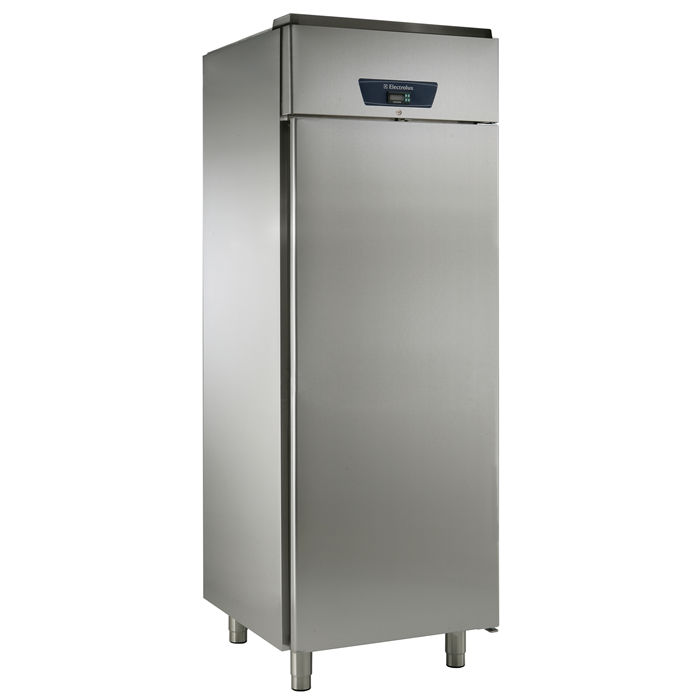

Benefit Digital 1 Full Door Refrigerator - 600 lt - 230 V/1N/50Hz

Volver a Preservación


  • Fully constructed in 304 AISI stainless steel. High-density expanded polyurethane insulating foam, 60mm in thickness. Lockable door with closure latch and microswitch to switch off the fan when the door is opened. Built-in refrigeration unit; ventilated operating mode; digital control; automatic defrost and evaporation of defrost water; external digital temperature display. Air conveyors allow installation up to 2100 mm from ceiling. For ambient temperatures up to 43 °C. CFC and HCFC free. R404a gas in refrigeration circuit. Mounted on 85 mm feet, adjustable in height up to 125 mm. Supplied with n. 3x2/1GN nylon coated grids and n. 3 sets of 2 stainless steel grid runners.

  • IP65 digital control panel allows for temperature and parameter setting as well as to activate defrosting when necessary.
  • Equipped with air conveyors to allow cabinet installation even up to 2100 mm of distance from ceiling.
  • The digital control features service and HACCP alarms and can be connected to a remote computer.
  • Refrigerator models have operating temperatures that can be adjusted from -2 to 10 °C to suit both meat and dairy storage requirements.
  • Forced air circulation for rapid cooling and an even temperature distribution.
  • Large storage area suitable to contain 2/1 GN grids or shelves on anti-tilt runners.
  • Lockable door with closure latch. · Automatic evaporation of defrost water.
  • Extremely quiet operation at 51 Db(A).
  • Cleaning-free condenser: the structure of the wire frame condenser prevents dust and grease accumulation thus avoiding periodical cleaning operations and reducing energy consumption.
  • Automatic evaporation of defrost water.
  • Door frame heater, activated according to external temperature, avoids condensation build-up around the door frame.

  • Mounted on 85 mm feet, adjustable in height up to 125 mm.
  • Electronic protection against high voltage peaks.
  • Coated evaporator to avoid corrosion and to guarantee everlasting operation.
  • Easy to clean, reversible self-closing door with baloon profile, magnetic door seal to guarantee perfect closure.
  • The rounded internal corners, the easily removable runners and grids allow for ease of cleaning and high hygiene standards.
  • High density polyurethane insulation, 60 mm tickness, HCFC free. · CFC and HCFC-free insulation.
  • Built-in compressor to suit operating conditions.
  • Refrigerant type: R404a.
  • Stainless steel AISI 304 internal and external panels including back


Electric
Supply voltage: 790132 (SB600P1D3C) 220-230 V/1 ph/50 Hz
Key Information:
Gross capacity: 600 lt
Door hinges:
External dimensions, Width: 720 mm
External dimensions, Height: 1985 mm
External dimensions, Depth: 780 mm
External dimensions, Depth with Doors Open: 1450 mm
Number and type of doors: 1 Full
Number and type of grids (included): 3 - GN 2/1
Type of external material: Stainless Steel AISI 304 Scotch Brite
Type of internal material: Stainless Steel AISI 304 Scotch Brite
Number of positions & pitch: 40; 30 mm
Refrigeration Data
Compressor power: 1/3 hp
Refrigerant type: R404A
Operating temperature min.: -22 °C
Operating temperature max.: 10 °C
Operating mode: Ventilated
Cooling unit: Built-In
Defrost type: Electric
