Congelador Digital, 600 Lts., 1 Puerta

790133 (SB600F1D3C)

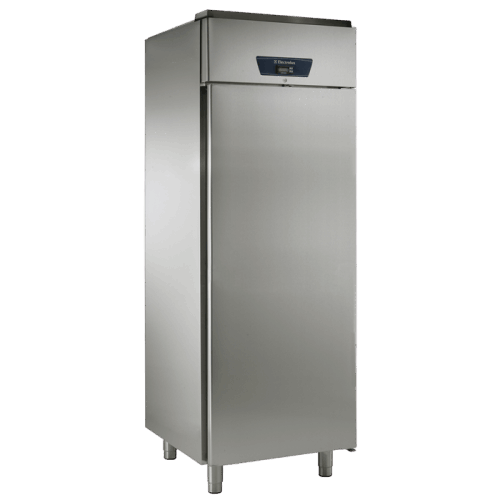

Benefit Digital 1 Full Door Freezer - 600 lt - 230 V/1N/50Hz

  • Fully constructed in 304 AISI stainless steel. High-density expanded polyurethane insulating foam, 60mm in thickness. Lockable door with closure latch and microswitch to switch off the fan when the door is opened. Built-in refrigeration unit; ventilated operating mode; digital control; automatic defrost and evaporation of defrost water; external digital temperature display. Air conveyors allow installation up to 2100 mm from ceiling. For ambient temperatures up to 43 °C. CFC and HCFC free. R404a gas in refrigeration circuit. Mounted on 85 mm feet, adjustable in height up to 125 mm. Supplied with n. 3x2/1GN nylon coated grids and n. 3 sets of 2 stainless steel grid runners.

  • IP65 digital control panel allows for temperature and parameter setting as well as to activate defrosting when necessary.
  • Equipped with air conveyors to allow cabinet installation even up to 2100 mm of distance from ceiling.
  • The digital control features service and HACCP alarms and can be connected to a remote computer.
  • Freezer model has operating temperatures that can be adjusted from -22 to -15 °C.
  • Forced air circulation for rapid cooling and an even temperature distribution.
  • Large storage area suitable to contain 2/1 GN grids or shelves on anti-tilt runners.
  • Lockable door with closure latch. · Automatic evaporation of defrost water. ·
  • Door frame heater, activated according to external temperature, avoids condensation build-up around the door frame.

  • Mounted on 85 mm feet, adjustable in height up to 125 mm.
  • Electronic protection against high voltage peaks.
  • Coated evaporator to avoid corrosion and to guarantee everlasting operation.
  • Easy to clean, reversible self-closing door with baloon profile, magnetic door seal to guarantee perfect closure.
  • The rounded internal corners, the easily removable runners and grids allow for ease of cleaning and high hygiene standards.
  • High density polyurethane insulation, 60 mm tickness, HCFC free.
  • CFC and HCFC-free insulation.
  • Refrigerant type: R404a.
  • Built-in compressor to suit operating conditions.
  • Stainless steel AISI 304 internal and external panels including back.

  • 3 of Kit of 1x2/1GN PVC grids with side runners for 600/1300lt refrigerated cabinets
Supply voltage: 790133 (SB600F1D3C) 220-230 V/1 ph/50 Hz
Key Information:
Gross capacity: 600 lt
Door hinges:
External dimensions, Width: 720 mm
External dimensions, Height: 1985 mm
External dimensions, Depth: 780 mm
External dimensions, Depth with Doors Open: 1450 mm
Number and type of doors: 1 Full
Number and type of grids (included): 3 - GN 2/1
Type of external material: Stainless Steel AISI 304 Scotch Brite
Type of internal material: Stainless Steel AISI 304 Scotch Brite
Number of positions & pitch: 40; 30 mm
Refrigeration Data
Refrigerant type: R404A
Operating temperature min.: -22 °C
Operating temperature max.: -15 °C
Operating mode: Ventilated
Cooling unit: Built-In
Defrost type: Electric
Defrost type: Electric
